Detailed introduction of Eg010Li modified sine wave portable power station

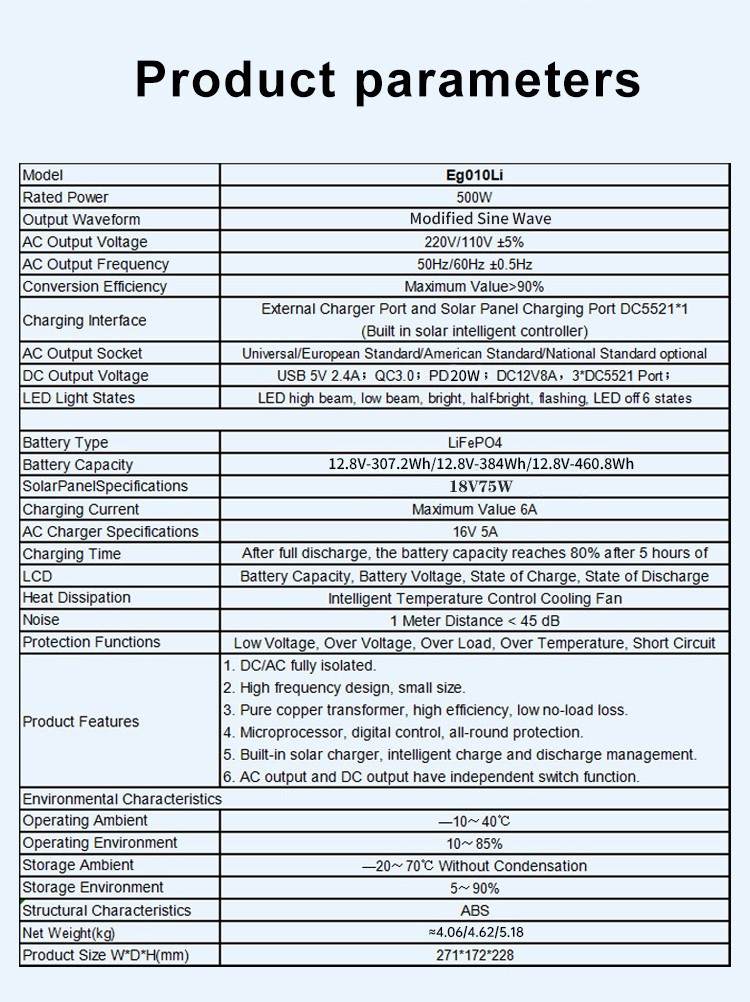

I. Core technical parameters

1. Battery capacity and energy density

· Optional capacity: 307.2Wh, 384Wh, 460.8Wh (corresponding to different models), meeting multi-level needs from short-distance camping to long-term emergency.

· Battery type: lithium-ion battery (LiFePO₄ lithium iron phosphate), cycle life of more than 2000 times (capacity maintained at 80% after charging and discharging), excellent high temperature resistance (-20℃~60℃), high safety.

· Energy conversion efficiency: inverter efficiency>90%, reducing power loss.

2. Power output capacity

· AC output:

· Rated power: 500W continuous output, peak power 1000W (can drive high-power devices such as rice cookers and microwave ovens).

· Voltage: 220V/110V intelligent switching, compatible with global electrical standards, fluctuation range ±5% (voltage stabilization design to avoid equipment damage).

·DC output:

·12V/10A, USB-A/C multiple interfaces, support fast charging of mobile phones, tablets, and car devices (compatible with PD 3.0, QC protocol).

·Solar charging:

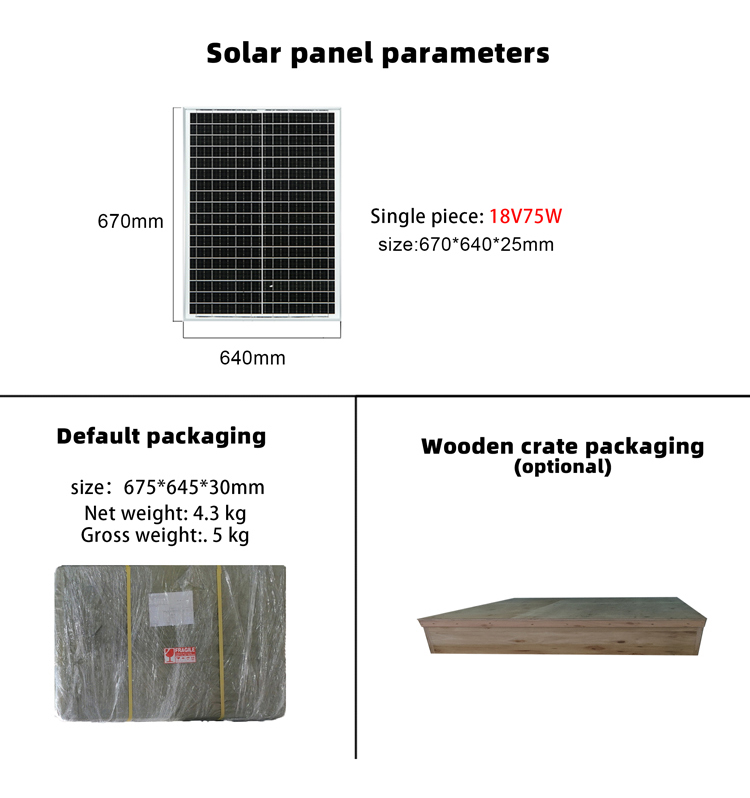

·Input: 18V/75W Max, can be connected to an external photovoltaic panel (such as a 100W solar panel that fully charges a 460.8Wh model in about 5 hours).

·Supports charging and discharging at the same time (the inverter function needs to be turned off to avoid overloading the photovoltaic panel).

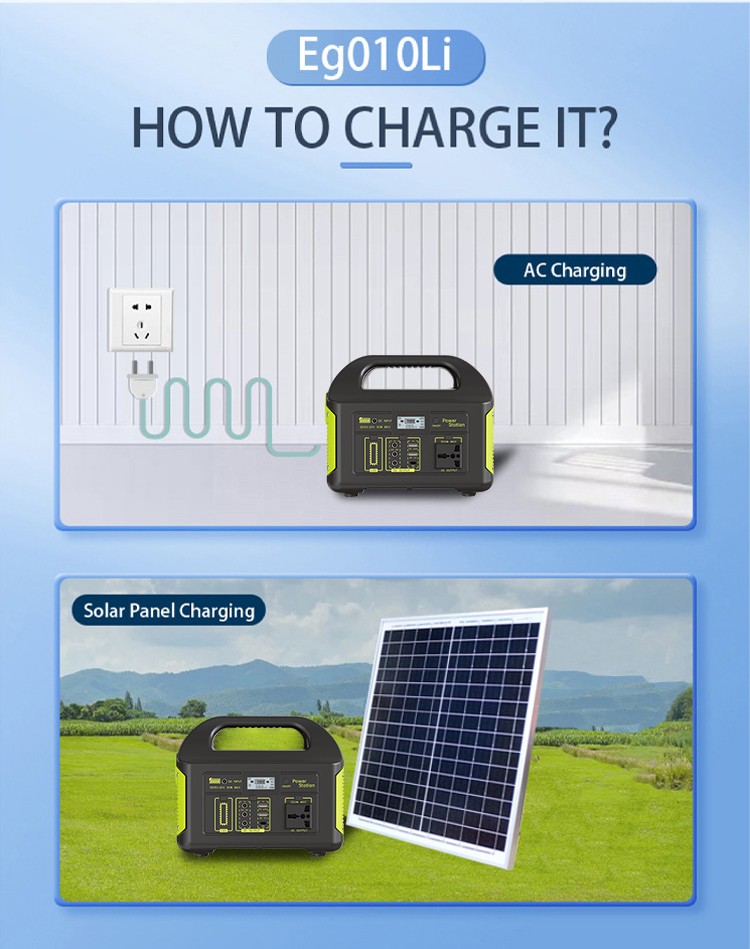

3. Charging method

·Mains charging: fully charged in about 2-3 hours through an adapter (input 100-240V~50/60Hz) (depending on the capacity).

·Hybrid charging: synchronous charging of mains + solar energy to shorten the charging time.

2. Safety and intelligent design

1. Multiple protection mechanisms

·BMS battery management system: real-time monitoring of voltage, current, and temperature to prevent overcharging, over-discharging, short circuit, and overheating.

·Hardware protection: intelligent fan heat dissipation (low noise design), fireproof ABS shell, and anti-seismic buffer structure.

·Reverse protection: prevent reverse current from damaging the device due to misoperation.

3. Scalability and compatibility

1. Multi-device adaptation:

·Compatible with mainstream solar panels (such as 100W, 200W), car chargers, and USB devices on the market.

·Support parallel expansion (multiple devices in series to increase capacity, requiring special cables).

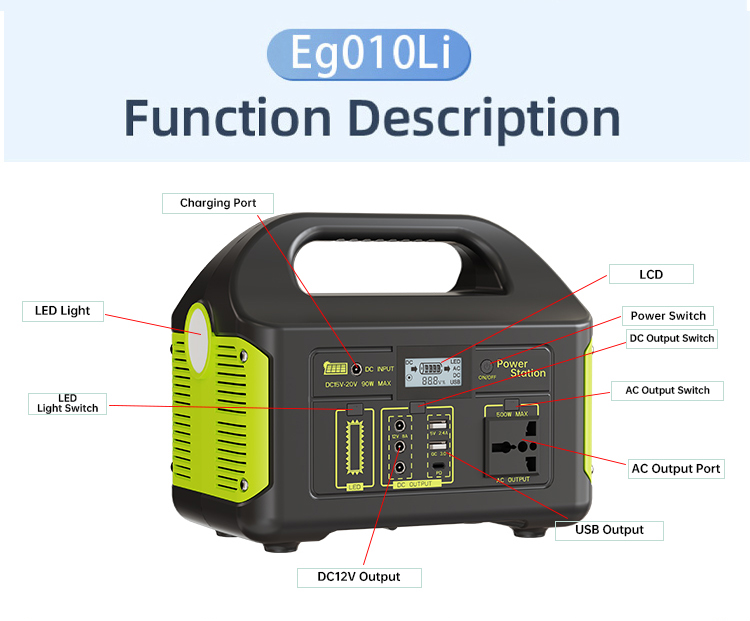

2. Rich interfaces:

·Standard configuration: 2AC sockets, 2USB-A, 1USB-C, 1DC car charger port, 1*solar input port.

·Optional expansion: add aviation plug, XT60 interface (customized cables required).

4. Certification and after-sales

·International certification: CE, FCC, RoHS certification, in line with air transport standards (can be carried on board).

·Warranty policy: 3 years or 1000 cycles warranty for battery pack, 1 year warranty for host machine.
