Detailed introduction to the functions of the inverter of the portable power station

Definition and function

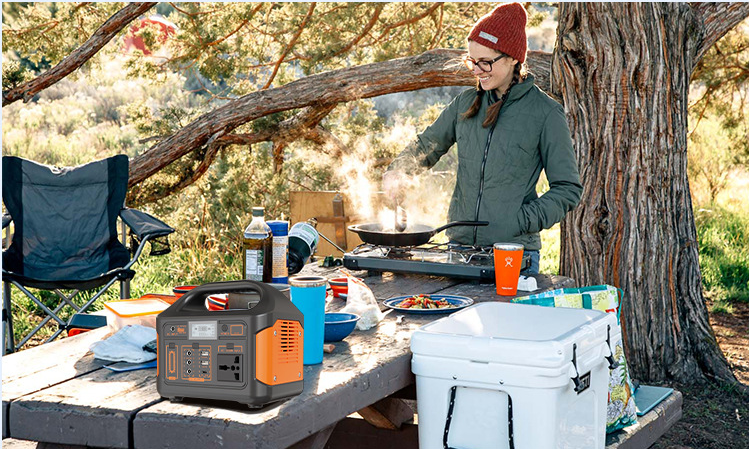

The portable power station inverter is a device that integrates battery energy storage and inverter functions, which can convert stored direct current (DC) into alternating current (AC) for use by various electrical devices4. It is like a small portable power station that provides reliable power support in outdoor activities, emergency rescue, home backup and other scenarios34.

Components

·Battery energy storage system: It is the core component responsible for storing electrical energy. Common battery types include lithium-ion batteries, lithium iron phosphate batteries, etc., which have the advantages of high energy density, long life and fast charging and discharging.

·Inverter: It is responsible for converting the DC power in the battery energy storage system into AC power, and adjusts the voltage and frequency of the DC power to a level suitable for household appliances, such as 220V, 50Hz, through electronic switches and transformers.

·Charging controller: It is used to manage the charging process of the battery, ensure that the battery works within a safe range, prevent overcharging, over-discharging and short circuit, and optimize the charging efficiency and extend the battery life.

·Output interface: Usually equipped with multiple output interfaces, such as AC socket, USB interface, DC interface, etc., to facilitate users to connect different types of electrical devices.

Working principle

·Charging process: Charging through solar panels, car chargers or AC power, etc., and storing electrical energy in the battery pack.

·Energy storage: The battery pack uses an efficient battery management system (BMS) to ensure the safety and efficiency of the energy storage process and monitor and manage the battery status in real time.

·Inversion: The built-in inverter converts DC power into stable AC power for various electrical appliances. In this process, DC power needs to be processed and converted by electronic circuits.

·Output control: The intelligent control system can monitor and adjust the output power in real time, and automatically adjust the output voltage, current, power and other parameters according to the needs of the connected equipment.
